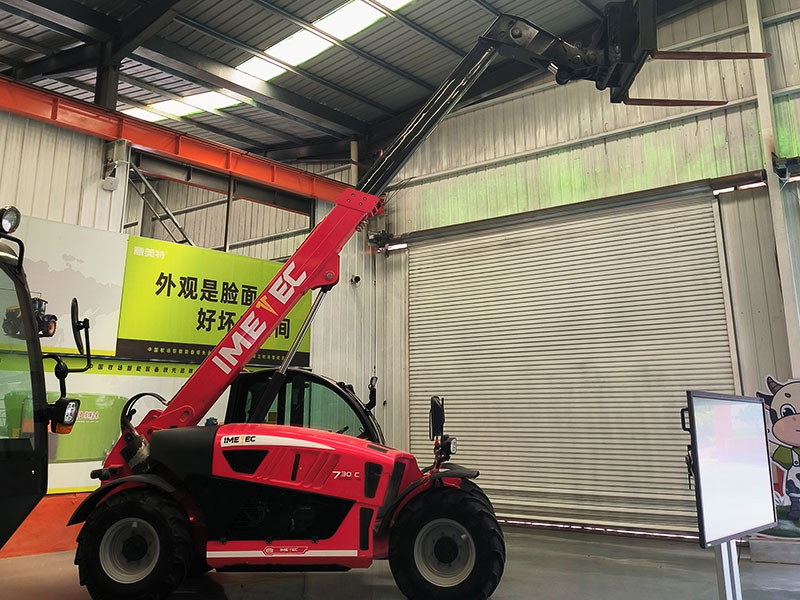

Telehandler

  • Category: Smart Four Sets Series
  • QR code:
  • 1.Imported hydraulic system, pump, motor,axle.

    2. All-terrain, four-wheel drive,it can walk in a crab shape.

    3.More than 100 kinds of attachments can be quickly switched to realize functions such as dragging, pulling, lifting, pushing, and shoveling.


    Specifications:

    Rated load:2-5T,Palletizing height:6-18m.


Product details:

序号参数
 1Total Length5100mm
 2Total Length (Including Fork)6300mm
 3Total Width2320mm
 4Total Height2500mm
 5Overall Weight 7400KG
 6Interior Width of Cab950mm
 7Wheel Track1820mm
 8Wheelbase3400mm
 9Ground Clearance400mm
 10Outer Turning Radius5000mm
 11Tire Model16/70-24
 12Diesel Tank Capacity 110L
 13Hydraulic Oil Tank Capacity 75L
 14Maximum Speed30km/h
 15Rated Load Capacity3500kg
 16Maximum Lifting Height6950mm
 17Operating System Pressure21apm
 18Engine StandardNational II
 19ManufacturerYuchai
 20Engine Model YCD4J22T-115
 21Rated Power 85KW
 22Drive ModeHydrostatic
 23Drive Type4*4
 24Steering ModeTwo-wheel, Four-wheel, Crab
 25Pump ValveDanfoss
 26AxleXCMG Wet Axle
