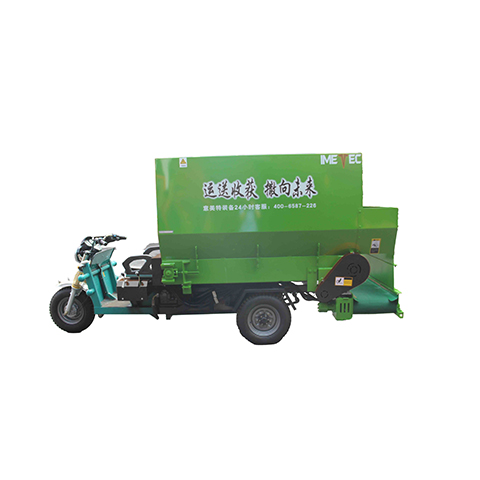

Three-wheeld electric spreader

  • Category: Electric feed spreader
  • QR code:
  • 1.Drving by electric saves cost.

    2.Special designed machine with reinforced chassis is suitable for narrow passages.

    3.Fast spreading speed with low noise

    4.One spreading direction or two spreading direction can be chosen.


    Capacity:2-6m³

Product details:

项目Project名称name标准配置参数Standard Configuration Parameters
 动力部分 型号规格Model Specification9DSL-3
品 牌Brand意美特Yimeite
车辆型号Vehicle Model宏迪三轮车Hongdi Tricycle
功率Power72v
油泵型号Oil Pump ModelYMT20/16
传送马达型号Conveyor Motor ModelBM4-490
出料马达型号Discharge Motor ModelBM1-160
传动方式Transmission Mode液压传动Hydraulic Transmission
箱体内传动方式Transmission Mode in Cabinet刮板链条Scraper Chain
出料方式Discharge Method皮带Belt
撒料方向Spreading Direction单方向  可选择出料方向Unidirectional (Discharge direction selectable)
撒料距离Spreading Distance0-300mm
出料系统  刹车方式Braking Method油刹Oil Brake
箱体厚度Cabinet Thickness2.75mm
整车钢板材质Whole Vehicle Panel MaterialQ235普板Whole Vehicle Panel Material
刮板材质Scraper Material镀锌方管Galvanized Square Tube
轮胎数量Number of Tires3
轮胎型号Tire Model500-12
整机尺寸Overall Machine Dimensions大约4460*1600*1800mm(长*宽*高)Approximately 4600×1600×1800mm (Length×Width×Height)
机重Machine Weight≧1500kg

备注:出料口高度可根据客户要求定制

Note: The height of the discharge outlet can be customized according to customer requirements
